OCTG
OCTG main products include:casing,tubing,drill pipe,drill collar, heavy weight drill pipe,slotted pipe, coupling and pup joint.
(1)Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.size:OD: 4 1/2’’ ~ 20’’ (114.3mm ~ 508mm)；WT: 0.205’’ ~ 0.635’’ (5.21mm ~ 16.13mm)；LENGTH: R1, R2, R3
(2)Tubing:The tubing is a pipeline that transports crude oil and natural gas from the oil and gas layer to the surface after drilling is completed. It is used to withstand the pressure generated during the mining process.Used for the Transmission of Oil & Gas
(3)Drill pipe:Oil drilling pipes are made by geological drilling steel by hot rolling or cold drawing. Grade: E75, X95, G105, S135. Mainly used for oil and gas exploitation.
(4)Drill Collars:Standard :API SPEC 7-1,Steel grade:AISI 4145H,Sizes:3 1/8″ — 11″,Connected Type:NC, IF, REG,Length:30 – 31 ft ± 6 ft.
Type of design:（1）plain;（2） with a recess of the elevator; （3） with a recess of the elevator and power slips; （4） spiral and a wide range of type mixtures.
(5)Heavy Weight Drill Pipe:Standard:API 5DP, API SPEC 7-1，Grade:API 5DP Grade DZ50, E75, R780, X95, G105, S135
Sizes:2 3/8”, 2 7/8”, 3 1/2” 4”, 4 1/2”, 5”, 5 1/2” up to 6 5/8” Range of Thickness: 6.5mm to 12.7mm, or cutomized，Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH，Length:R1, R2, R3
(6)Slotted Pipe:Standard:API 5CT,Grade:API J55, API K55, API N80, API L80, API P110,Thickness:6.88mm – 11.51mm,Sorts:API casing,Length:≤15m (each),Outside Diameter:50~200mm,Slot Width:(0.10~4)mm ±0.03mm
(1)Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore.size:OD: 4 1/2’’ ~ 20’’ (114.3mm ~ 508mm)；WT: 0.205’’ ~ 0.635’’ (5.21mm ~ 16.13mm)；LENGTH: R1, R2, R3
(2)Tubing:The tubing is a pipeline that transports crude oil and natural gas from the oil and gas layer to the surface after drilling is completed. It is used to withstand the pressure generated during the mining process.Used for the Transmission of Oil & Gas
(3)Drill pipe:Oil drilling pipes are made by geological drilling steel by hot rolling or cold drawing. Grade: E75, X95, G105, S135. Mainly used for oil and gas exploitation.
(4)Drill Collars:Standard :API SPEC 7-1,Steel grade:AISI 4145H,Sizes:3 1/8″ — 11″,Connected Type:NC, IF, REG,Length:30 – 31 ft ± 6 ft.
Type of design:（1）plain;（2） with a recess of the elevator; （3） with a recess of the elevator and power slips; （4） spiral and a wide range of type mixtures.
(5)Heavy Weight Drill Pipe:Standard:API 5DP, API SPEC 7-1，Grade:API 5DP Grade DZ50, E75, R780, X95, G105, S135
Sizes:2 3/8”, 2 7/8”, 3 1/2” 4”, 4 1/2”, 5”, 5 1/2” up to 6 5/8” Range of Thickness: 6.5mm to 12.7mm, or cutomized，Connection threads:NC26, NC31, NC38, NC40, NC46, NC50, 5 1/2FH.6 5/8FH，Length:R1, R2, R3
(6)Slotted Pipe:Standard:API 5CT,Grade:API J55, API K55, API N80, API L80, API P110,Thickness:6.88mm – 11.51mm,Sorts:API casing,Length:≤15m (each),Outside Diameter:50~200mm,Slot Width:(0.10~4)mm ±0.03mm
Application: Used for connect 2 joints of tubing or casing
Size:Outer Diameter: 2 7/8” – 6 5/8”
Lengths: Range 2 and Range 3
Pipe Standard:API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
End Finishes:Internal Upset, External Upset, Plain End Upset, Non Upset
Tool Joint type:NC38、NC46、NC50、5-1/2 FH
VIEW MORE +
Size:Outer Diameter: 2 7/8” – 6 5/8”
Lengths: Range 2 and Range 3
Pipe Standard:API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
End Finishes:Internal Upset, External Upset, Plain End Upset, Non Upset
Tool Joint type:NC38、NC46、NC50、5-1/2 FH

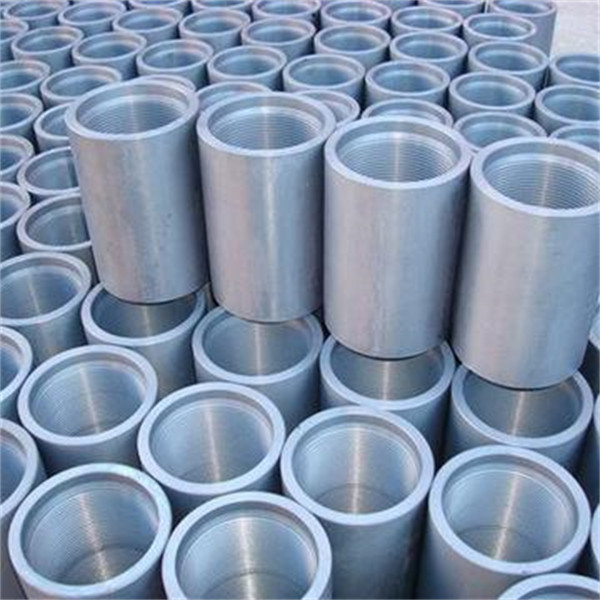

Product:Casing and Tubing Coupling, Casing Coupling, Tubing Coupling
Application:Used for connect 2 joints of tubing or casing
Size:Tubing Coupling : 1.9'' - 4-1/2''
Casing Couping : 4-1/2'' - 13-3/8''
Pipe Standard: API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
Surface:Whole Phosphating or inside phosphating and outside coating
Thread:NUE, EUE, STC, LTC, BTC etc
VIEW MORE +
Application:Used for connect 2 joints of tubing or casing
Size:Tubing Coupling : 1.9'' - 4-1/2''
Casing Couping : 4-1/2'' - 13-3/8''
Pipe Standard: API 5CT and 5B PSL1/PSL2 J55,K55,N80-1,N80-Q,API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
Surface:Whole Phosphating or inside phosphating and outside coating
Thread:NUE, EUE, STC, LTC, BTC etc
Product: Drill Collar
Standard:API SPEC 7-1
Steel grade:AISI 4145H
Sizes:3 1/8" -- 11"
Connected Type:NC, IF, REG
VIEW MORE +
Standard:API SPEC 7-1
Steel grade:AISI 4145H
Sizes:3 1/8" -- 11"
Connected Type:NC, IF, REG
Application: Used for Mine, water well drilling, well drilling, coal and fore poling
Size:OD: 60.32mm-168.28mm,WT: 6.45-12.7mm,LENGTH: R1, R2, R3
Pipe Standard:API 5DP E75, X95, G105, S135
Upset Style:IU, EU, IEU
Connection:NC26 - NC50, 5 1/2FH, 6 5/8FH
Internal coating:TK34,TC2000, Arnco 100XT, 200XT, 300XT
InquirySend Email To Us
VIEW MORE +
Size:OD: 60.32mm-168.28mm,WT: 6.45-12.7mm,LENGTH: R1, R2, R3
Pipe Standard:API 5DP E75, X95, G105, S135
Upset Style:IU, EU, IEU
Connection:NC26 - NC50, 5 1/2FH, 6 5/8FH
Internal coating:TK34,TC2000, Arnco 100XT, 200XT, 300XT
InquirySend Email To Us
Dimension range (OD inch): 1-1/2”----4 1/2”
Dimension range (OD mm): 26.67----114.3
Type of upset: NUE, EUE, Plain end.
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc.
Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ).
VIEW MORE +
Dimension range (OD mm): 26.67----114.3
Type of upset: NUE, EUE, Plain end.
Standard: API SPEC 5CT
Main Steel Grade: H40, J55, N80, N80Q, L80, L80-1, L80-9Cr, L80-13Cr, P110 etc.
Type of Tubing: Non-upset tubing (NU), External-upset tubing (EUE), Integrated Joint (IJ).
Application：Oil well casing serves as well sidewall
Pipe Standard：API SPEC 5CT
Size：OD: 114.3-508mm,WT: 5.21-16.13mm
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr,C95, P110.
Thread types:STC, LTC, BTC etc
VIEW MORE +
Pipe Standard：API SPEC 5CT
Size：OD: 114.3-508mm,WT: 5.21-16.13mm
Process Type: Seamless (SMLS), Electric Resistance Welded (ERW)
Grade: J55, K55, N80-1, N80-Q, L80-1, L80-9Cr, L80-13Cr,C95, P110.
Thread types:STC, LTC, BTC etc
